Repair guide: UNIT-4 Tweeter

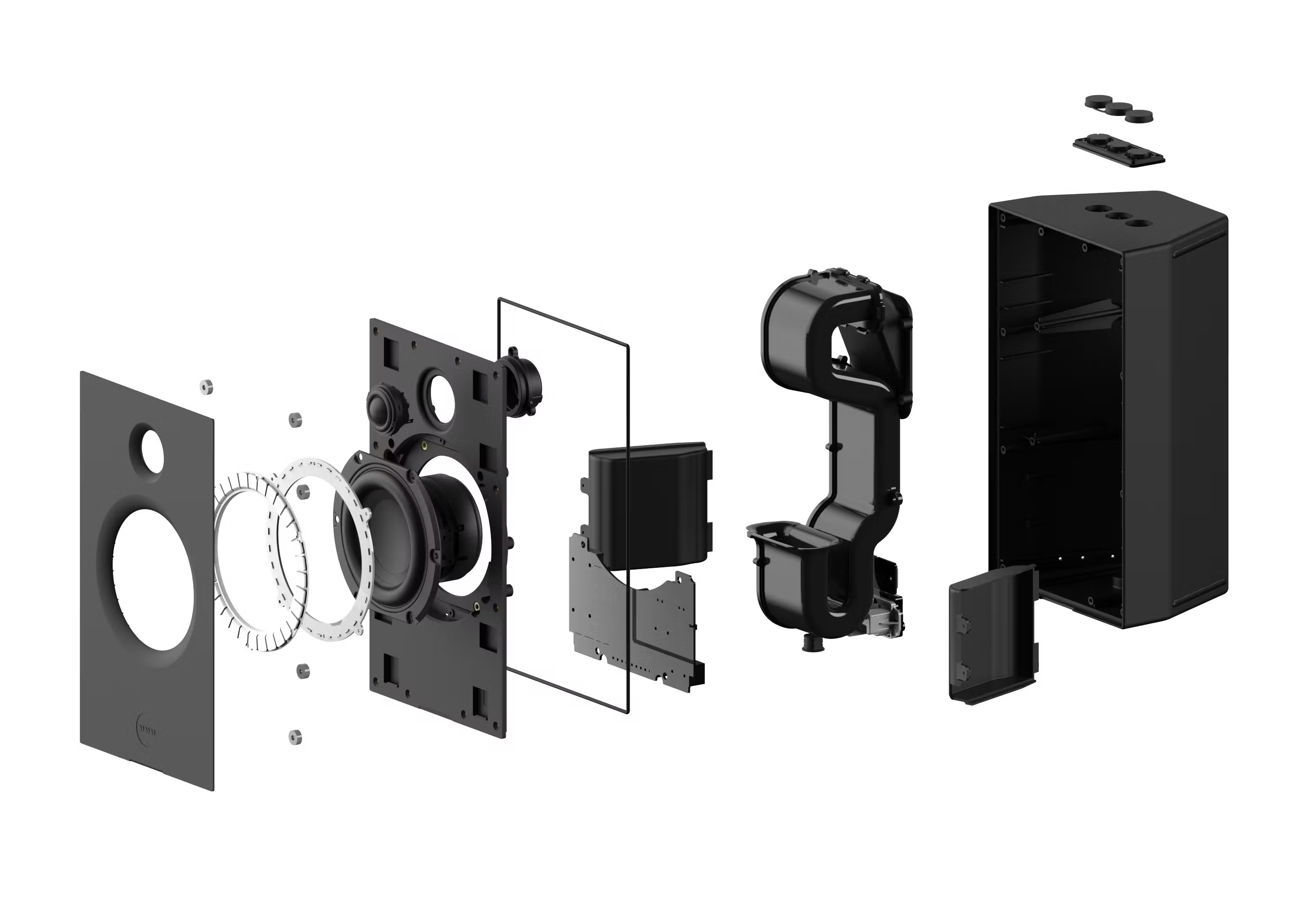

Some components are expected to wear out over UNIT-4’s lifetime - main examples being batteries and speaker drivers. UNIT-4 has been designed to be disassembled with glue-free design by anyone with 2 screwdrivers and AIAIAI’s step by step repair guides. This will make sure your UNIT-4's will stay with you for as long as possible.

TOOLS

All you need is a thin, hard plastic tool or an old credit card and 2 cross head screwdrivers. We use a Phillips 00 and a Phillips 2.

REPLACING THE TWEETER

Remove the front panel

• Make sure UNIT-4 is turned off.
• Use a thin, hard plastic tool or an old credit card and pull off the front panel.

Remove front housing

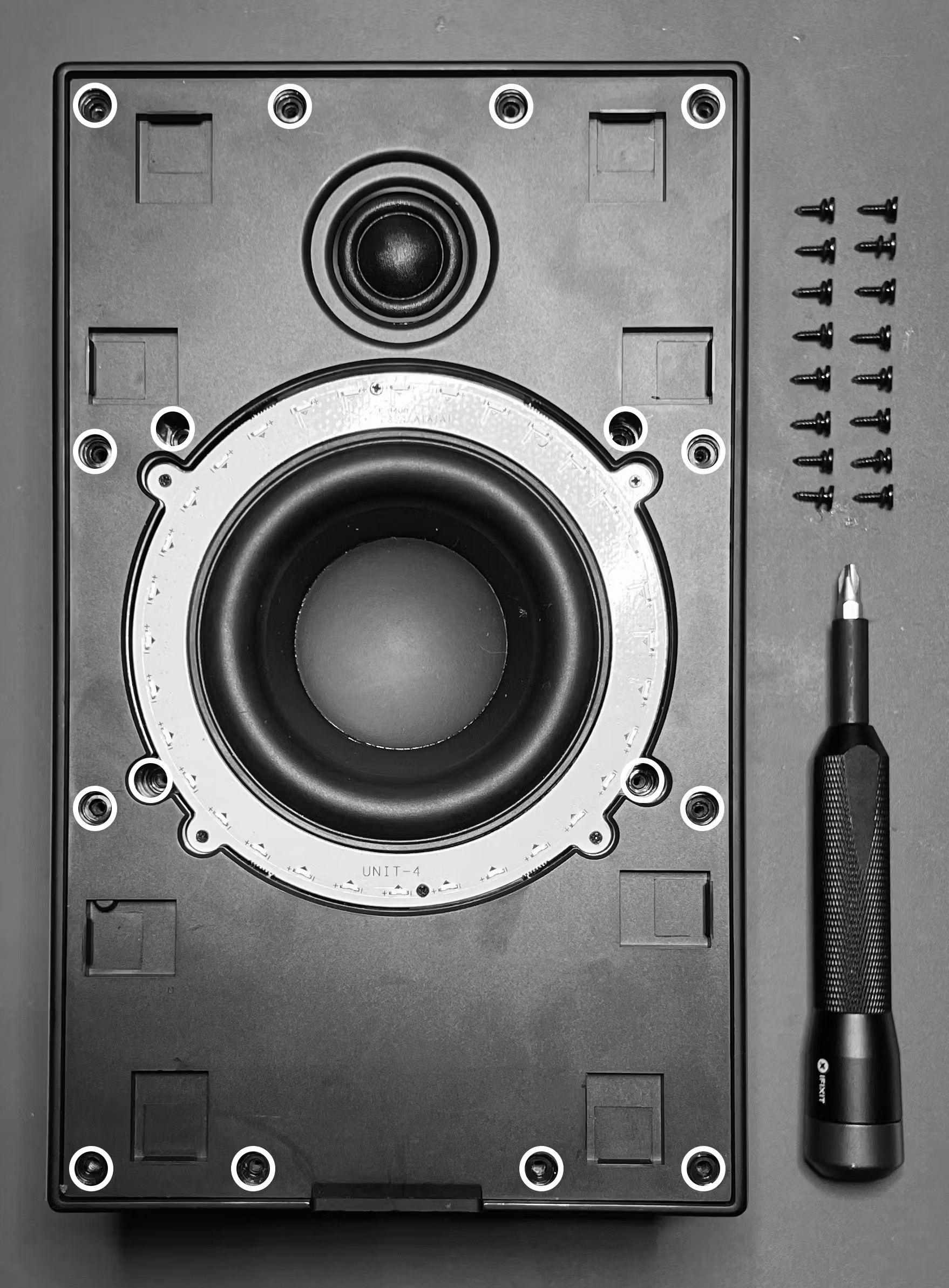

• Take a screwdriver and remove all 16 screws as shown on the image below.

• Place UNIT-4 upright and carefully lean forward while supporting the front.
• If the front housing is too tight, we recommend using a flathead screwdriver or similar to pull the housing out. You can do this by pulling it out by the magnet locks.

Disconnecting the tweeter

• Use a thin and pointy tool to unlock the cable connectors.

• Unscrew the 3 screws

Install new tweeter

• Carefully insert the new tweeter.
• Connect the cable connectors.

• Screw in the 3 screws.

Fix in front housing

• Carefully tilt up the front housing and push into place.
• Make sure no cables are trapped.

• Add all the 16 screws and hand tighten.

Mount front panel

• Take the front panel and place on top of the front housing.

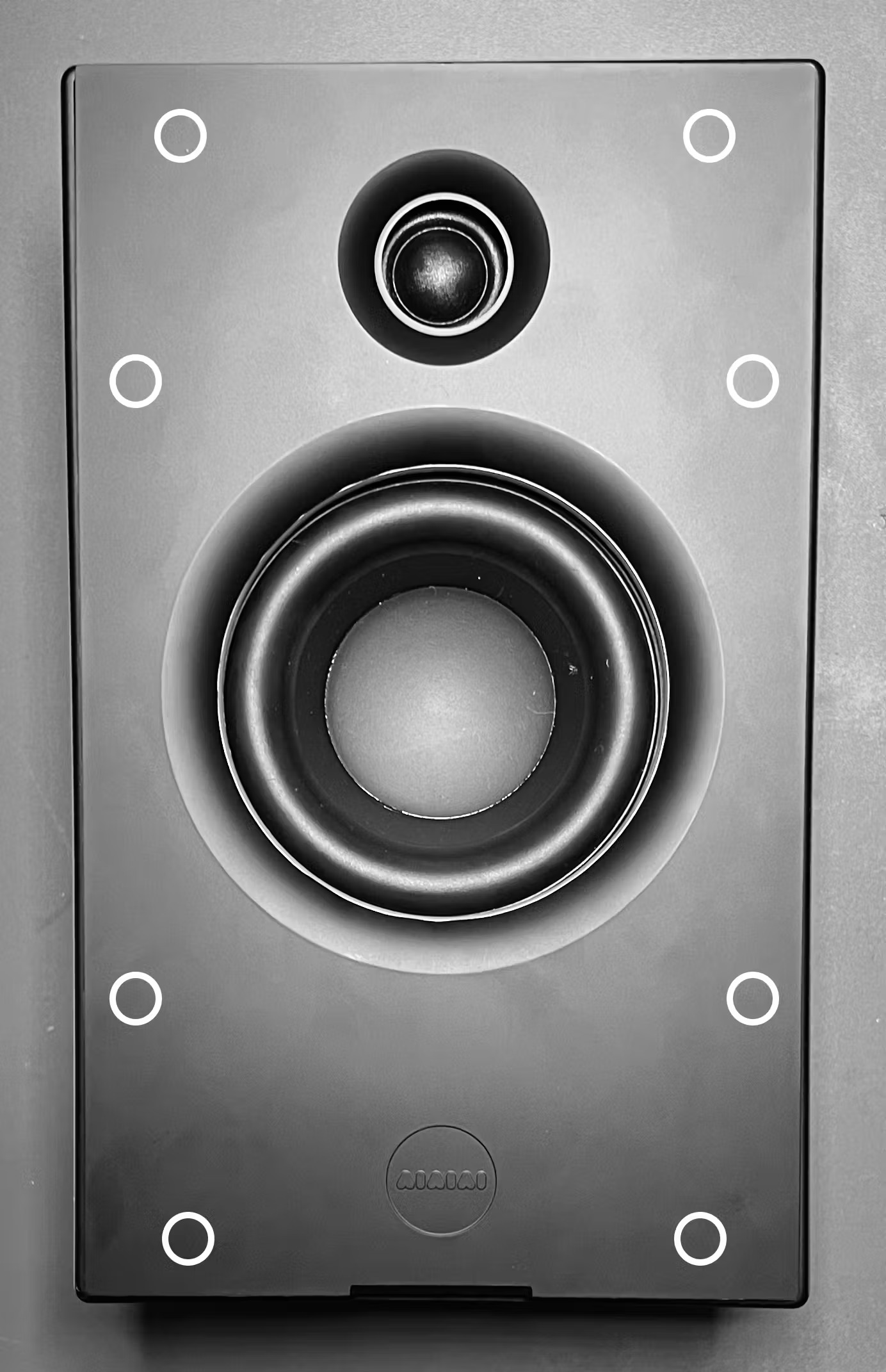

• Push with 2 thumbs on the 8 points shown below.
