In this article you will find our repair guide for the S11 W+ Link Ultra-low latency Speaker units. Here, you will both see how to disassemble them, and change their battery.
If you have any questions regarding this process, you are always more than welcome to reach out to our Support team through this link.
TOOLS

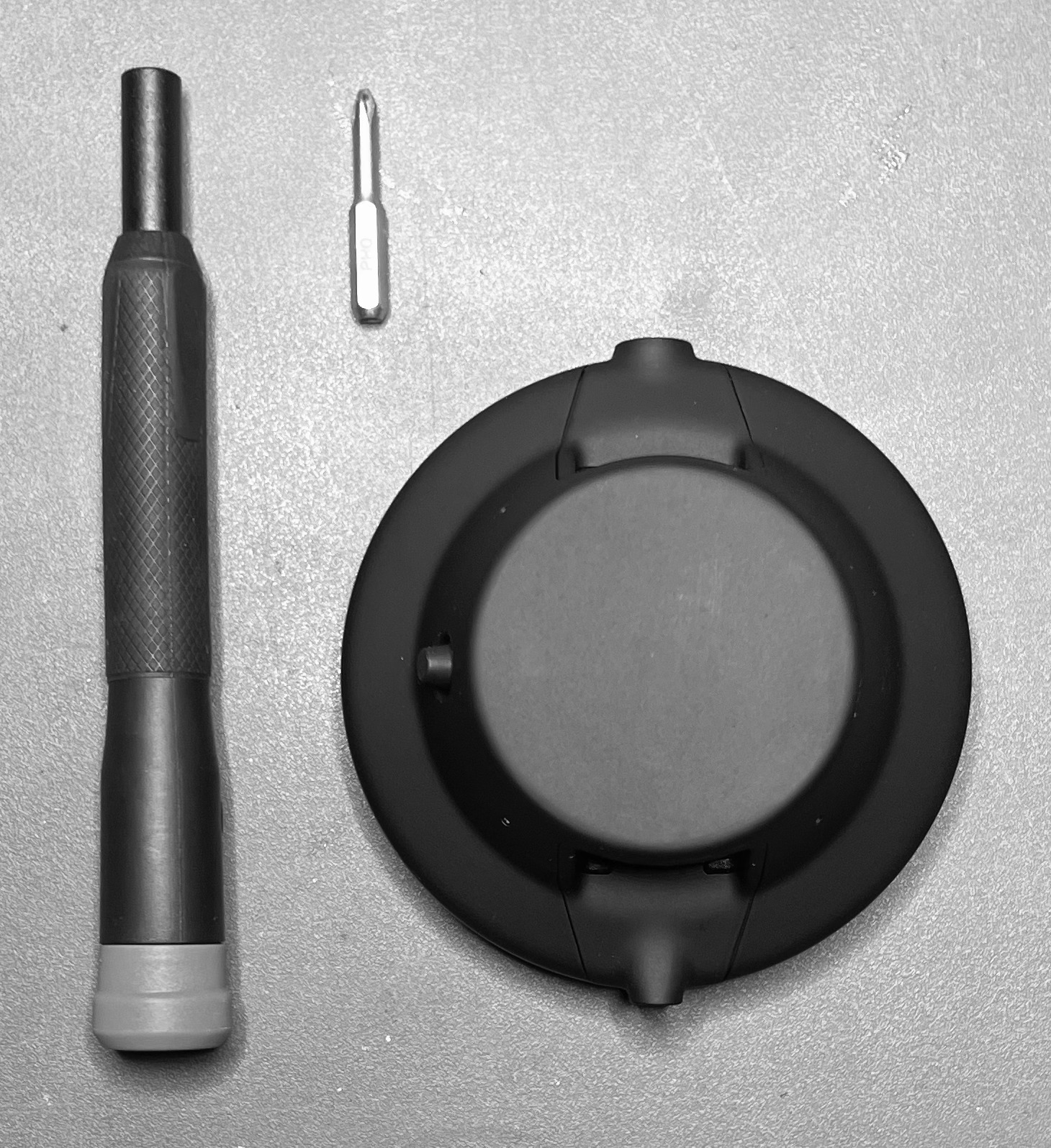

All you need is a small cross head screwdriver. We use a Phillips 00.
DISASSEMBLY

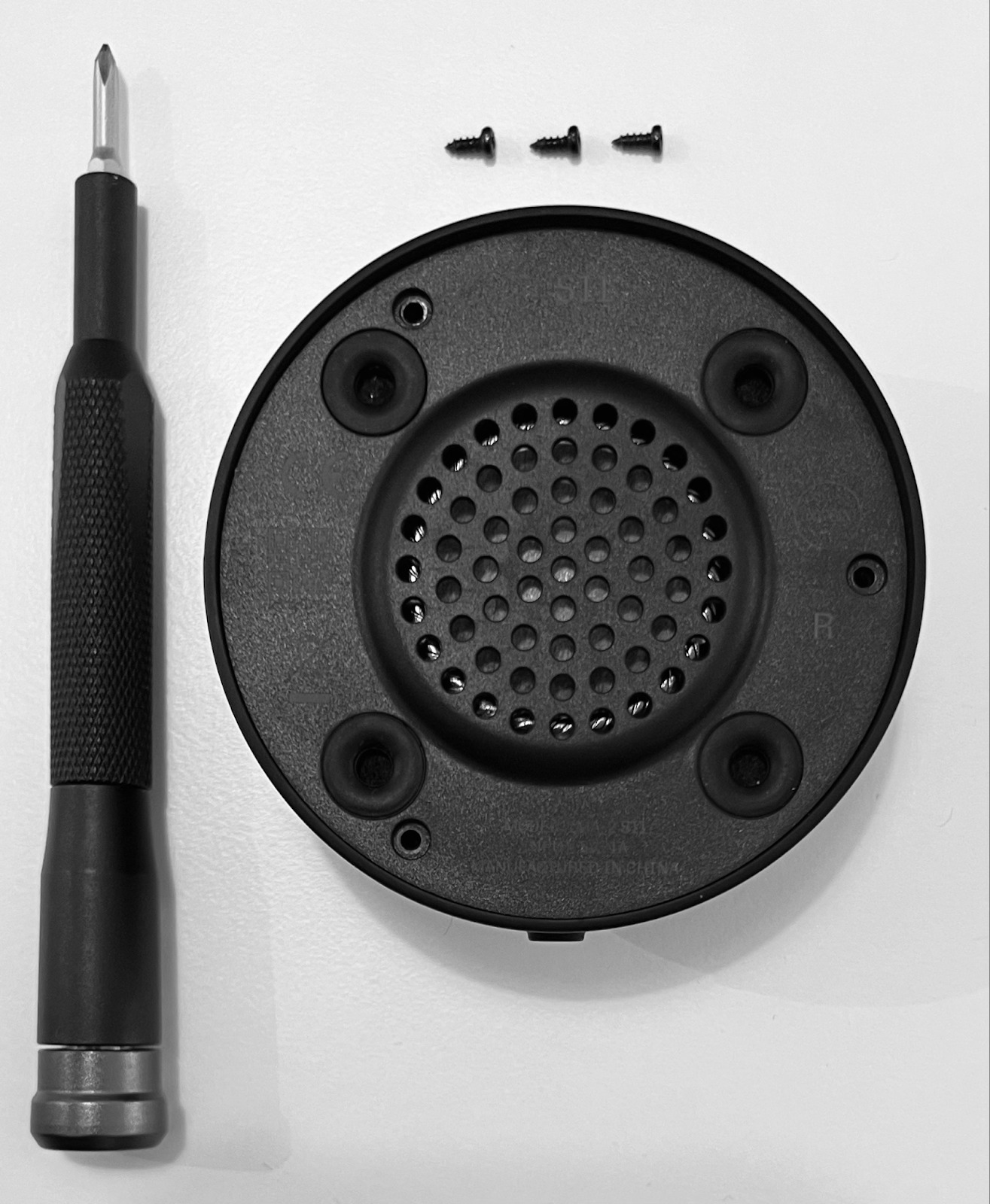

Remove all 3 screws in the speaker plate.

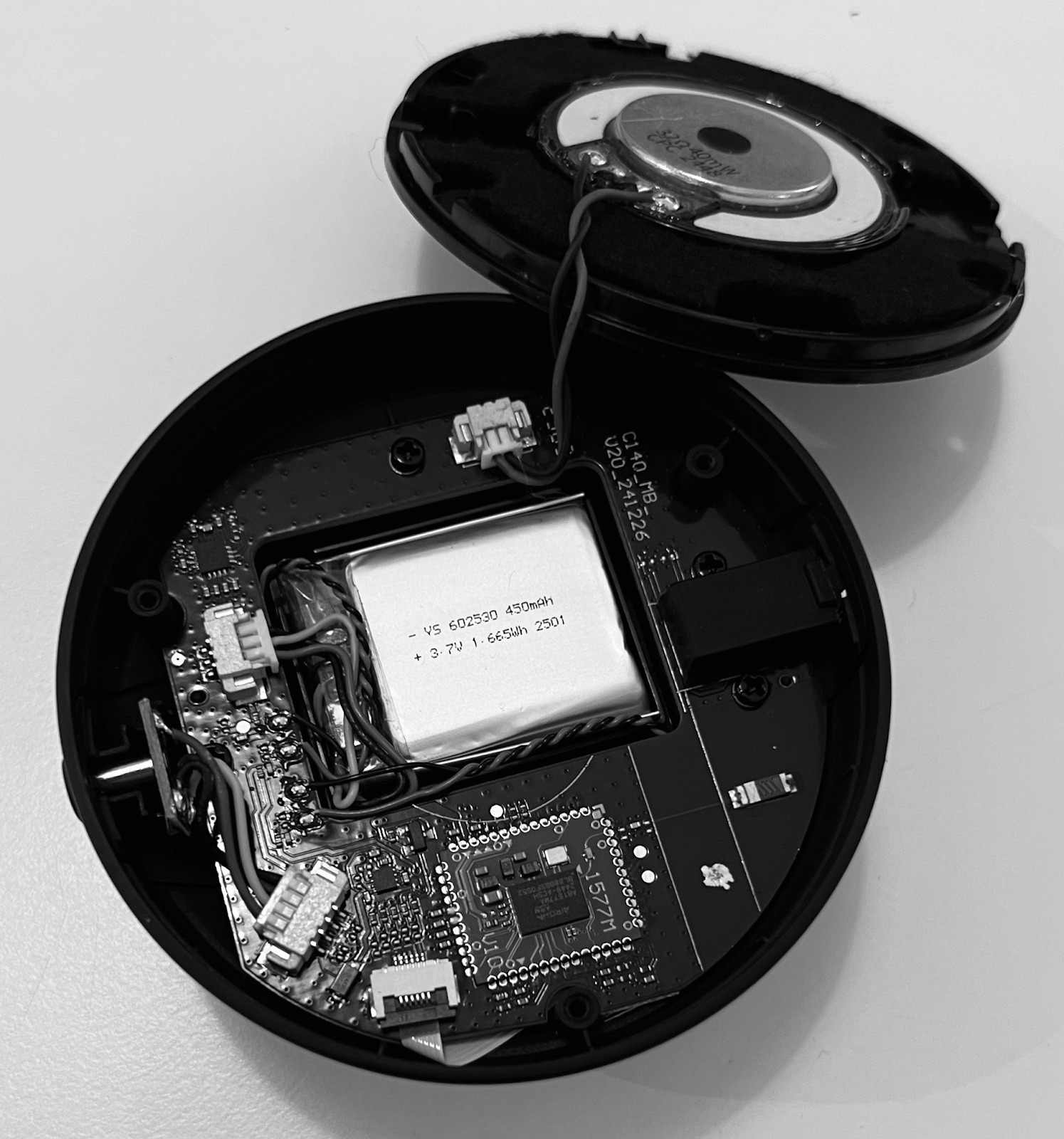

Carefully lift out the speaker plate.

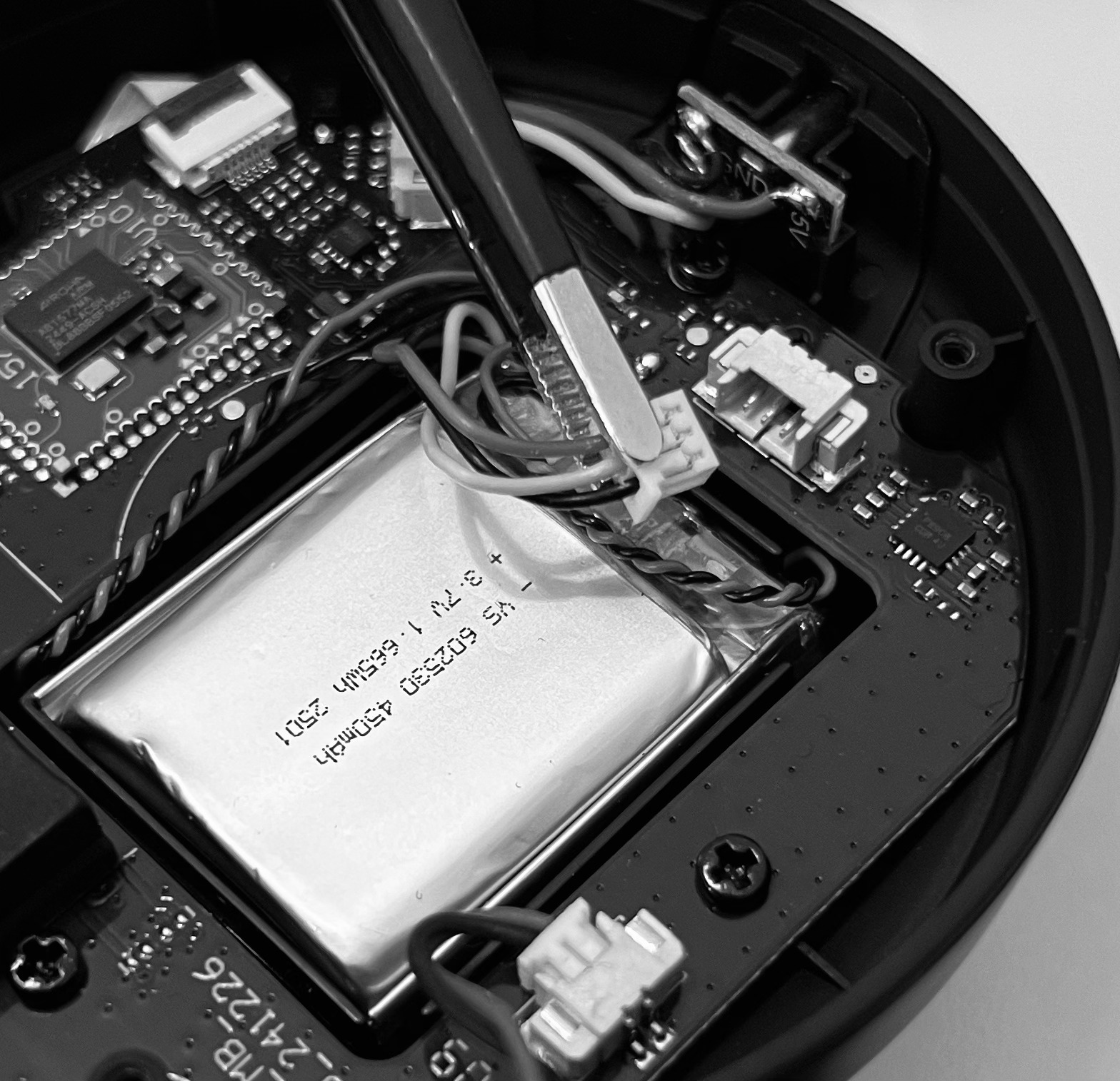

Disconnect the battery.

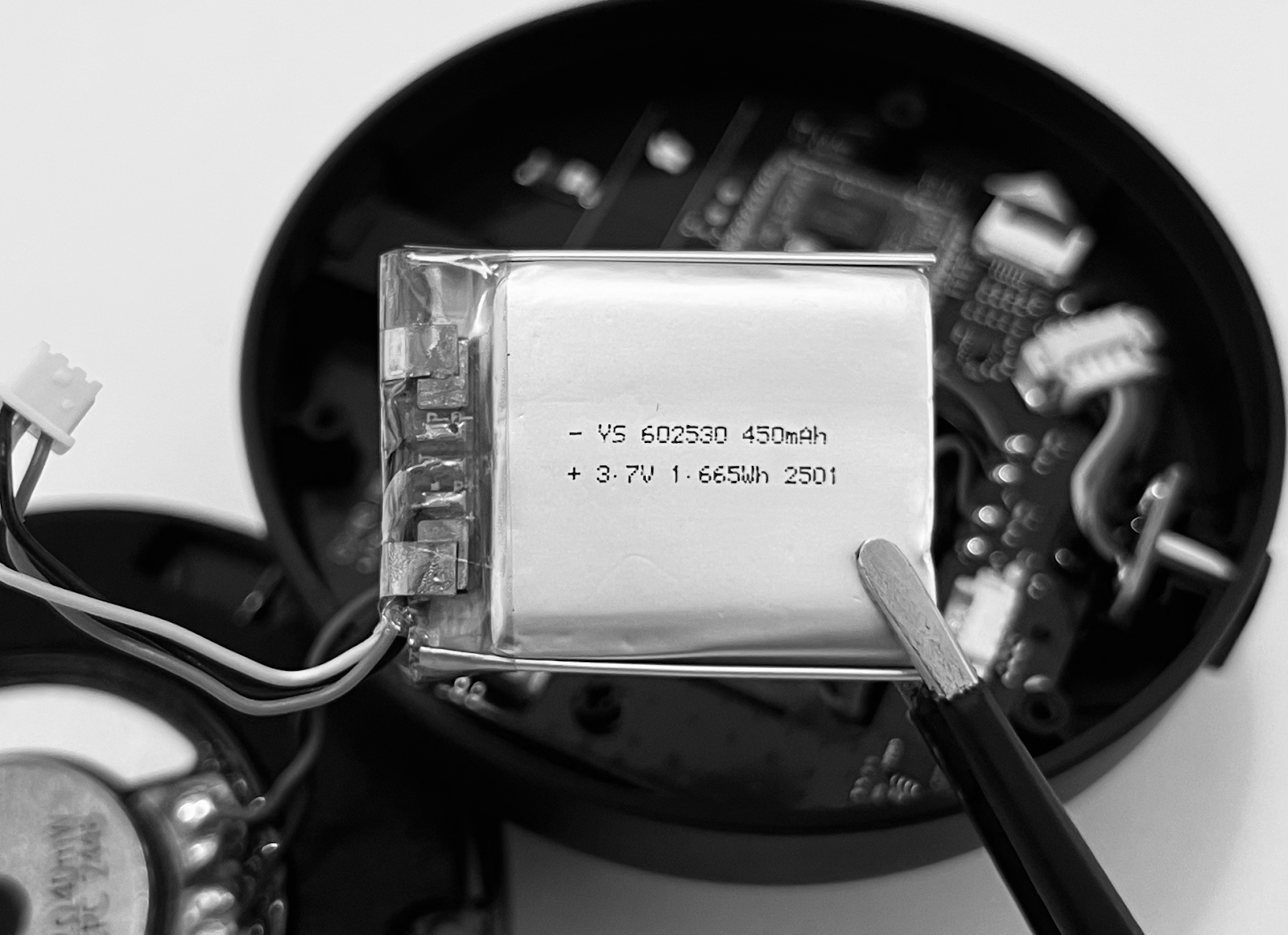

Carefully pull the battery off of the pin plate.
Replace with a new battery.
