Product Manual - UNIT-4

If you have 2 speakers, follow these steps on both.

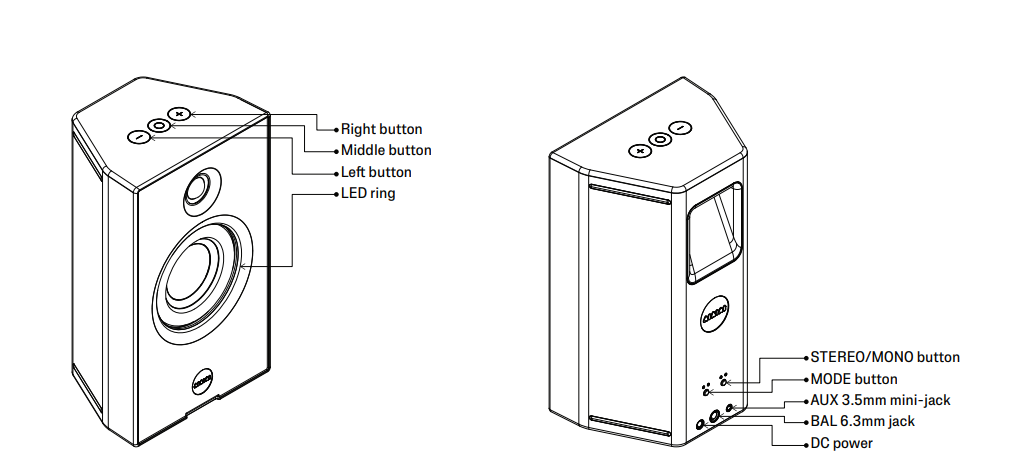

Power on/off

Press and hold the middle button for 2 seconds.

Choose connection mode

Press the mode button to choose between W+ link and Bluetooth or insert an audio cable.

• W+ link mode: Connecting to transmitter for a ultra low latency experience
• Bluetooth mode: Connecting directly to your device
• Cabled: insert cable directly to your audio output.

Pairing - Bluetooth and W+ link.

Press and hold the Mode button for 2 seconds.

Bluetooth - find AIAIAI UNIT-4 on your device and pair.

W+ link - put your transmitter into pairing mode

Choose Left, Right or Mono

Press the Stereo/Mono button to switch between Left (L), Right (R) or Mono (both L and R) settings.

Playback Controls

Volume up/down: Single press +/- buttons.

Mute: Single press the middle button.

Adjust LED ring brightness

Triple press the middle button to turn the LED ring on or off.

Adjust the EQ

Download the AIAIAI app to customise your sound.

Charging

Check battery level: double press the middle button

To charge the UNIT-4, connect the power supply to the UNIT-4 charging socket and to your mains power socket.

UNIT-4 Dimensions

Weight pr. monitor: 3kgs

Width: 15,6cm

Height: 25,8cm

Depth: 11,4cm.
