X03 Transmitter
AIAIAI TMA-2 Product Manual
Compatible with S11 Speaker unit

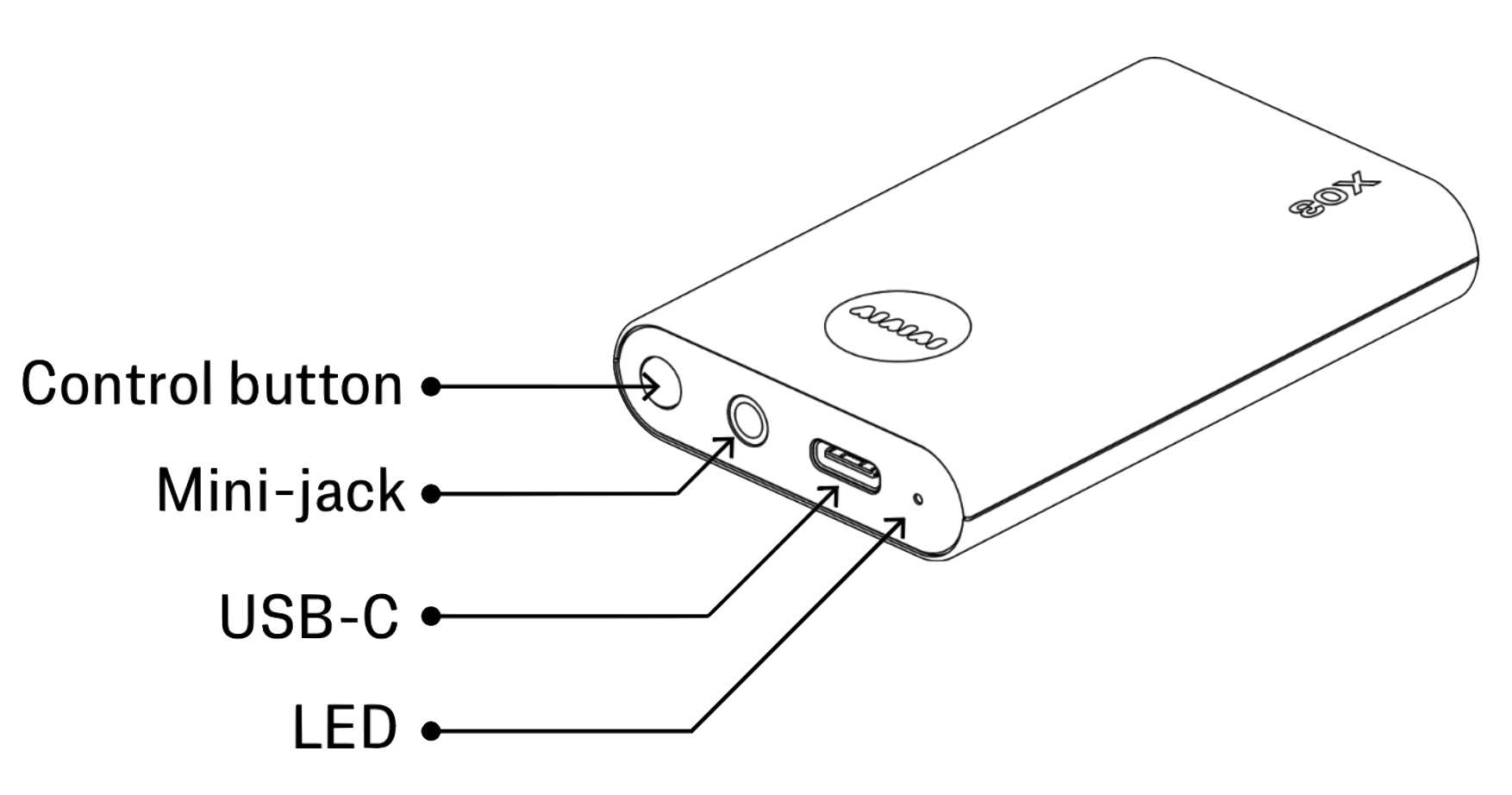

Button Functions
Turn on X03: Hold the button for 2 seconds, until the LED turns on.
Turn off X03: Hold the button for 2 seconds, until the LED turns off.
Check battery level: Push the button once.
Red: <10 hours.
Amber: 10-20 hours.
Green: 20+ hours.
Enter pairing mode: With power off, hold the button for 4 sec, until the LED starts flashing fast.
Reset S11 paired devices: With power off, hold the button for 8 sec. The LED will flash fast when reset.
LED FEEDBACK
State | LED Feedback |
Not paired (Idle mode) | LED flashing white (1 sec on, 1 sec off, loop) |
Pairing mode | LED flashing white (0.3 sec on, 0.3 sec off, loop) |
Paired | Constant white |
Reset paired device list | LED flashing fast 5 times (0.1 sec on, 0.1 sec off) |
Battery status (power on) | Push the control button. Battery is displayed for 3 sec. 20 - 40 hours - Constant green 10 - 20 hours - Constant amber 3 - 10 hours - Constant red 0 - 3 hours - Flashing red (0.3 sec on, 0.3 sec off) |
Low battery indicator (power on) | Flashing red (0.3 sec on, 0.3 sec off) |
Charging (power on) | Battery status is shown for 3 sec after USB-C charger connected Check battery status by pressing the button |
Charging (power off) | Fully charged - Constant green 20 - 40 hours - Flashing green (1 sec on, 1 sec off) 10 - 20 hours - Flashing amber (1 sec on, 1 sec off) 0 - 10 hours - Flashing red (1 sec on, 1 sec off) |
