What's included:
- UNIT-4 Studio monitors
- X02 Transmitter
- Power cables and charger
Connecting to transmitter (ultra low latency)
- Power on both UNIT-4 monitors by holding the middle button for 2 seconds
- Ensure both monitors are in W+ mode using the Mode button on the back
- Leave X02 unplugged for now (powered off)
- Hold the Mode button on both UNIT-4 monitors until the LEDs start flashing 2 times per second
- Check that the LEDs are flashing 2 times per second on both UNIT-4 monitors
- If not - hold the Mode button on the other UNIT-4 to enter pairing mode
- Plug in X02 to a power supply or your device
- Wait for the LEDs to turn on
- Hold the button on X02 until all of the LEDs are constantly on - no flashing.
- The pairing is complete.
Click here for a video guide - UNIT-4 Getting started
Connecting via Bluetooth
- Power on both UNIT-4 monitors
- Make sure both are in Bluetooth mode
- Set one speaker to Left and the other to Right
- Double press the mode button on both monitors
- Wait 7 seconds for the monitors to find each other
- Pairing is complete when the LED flashes fast on both monitors
- Find AIAIAI UNIT-4 on your device and connect.
Click here for a video guide - UNIT 4 Bluetooth stereo pairing.
Customizing your sound

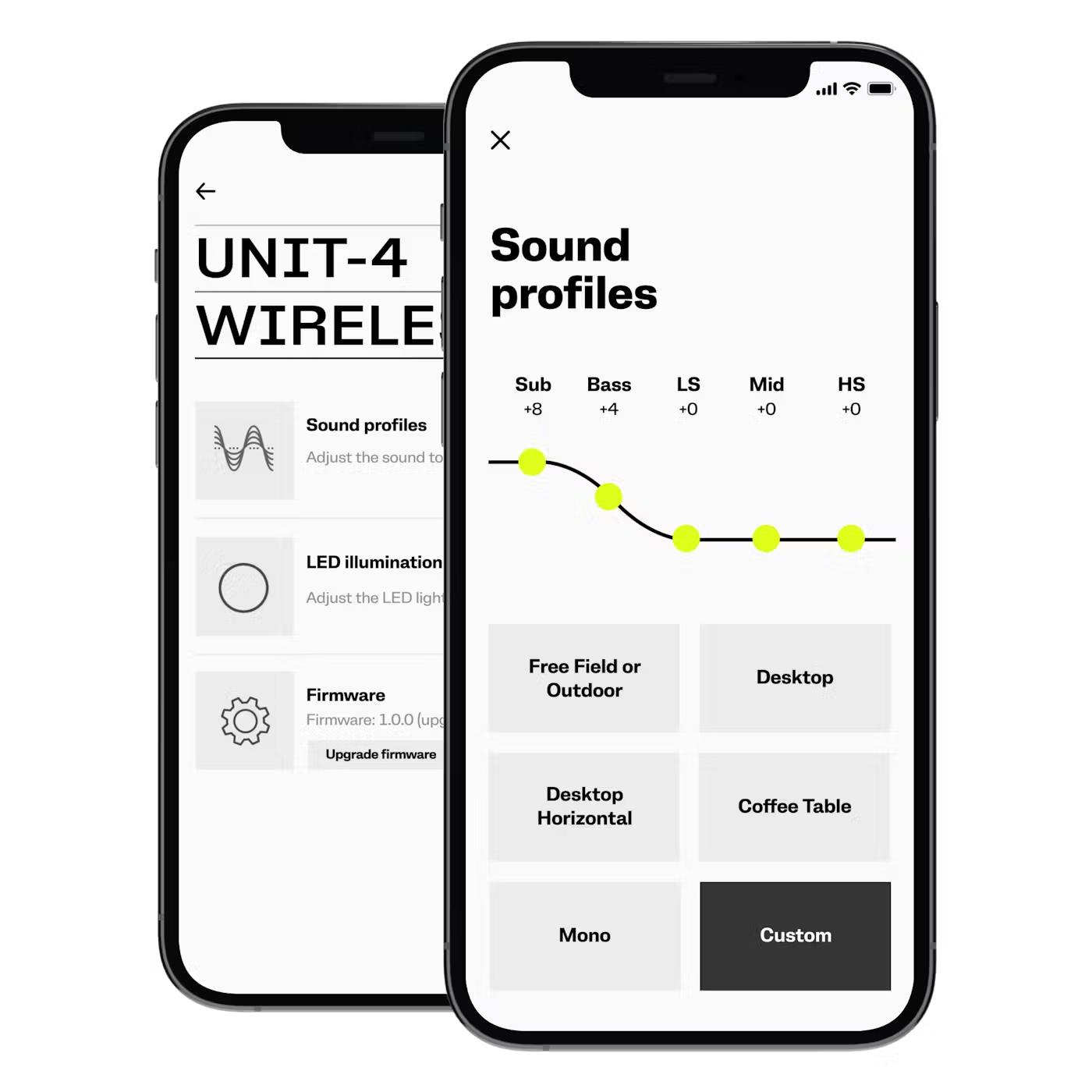

UNIT-4 is tuned for studio use out of the box. Tune the frequency response to your space using the predefined sound profiles or customizable 5-band EQ with the UNIT-4 mobile app.
Apple App Store: Download for iOS
Google Play Store: Download for Android
